The installation of our devices takes about 3 minutes. All you need to do is remove a given switch (e.g. the one responsible for switching the lights on and off) from the wall, disconnect it from the wires coming out of the wall, connect the Fibaro module to the wires and reconnect the switch to the module. Next you need to screw the switch into the wall, and thus complete the process of physical installation.
Each Fibaro System module is only 42.5 mm long, 37.0 mm wide and 15.9 mm high, which makes them the world’s smallest devices of this type. Some other advantages of the Fibaro System include neat appearance, reliability and perfection.
Simple and non-invasive installation

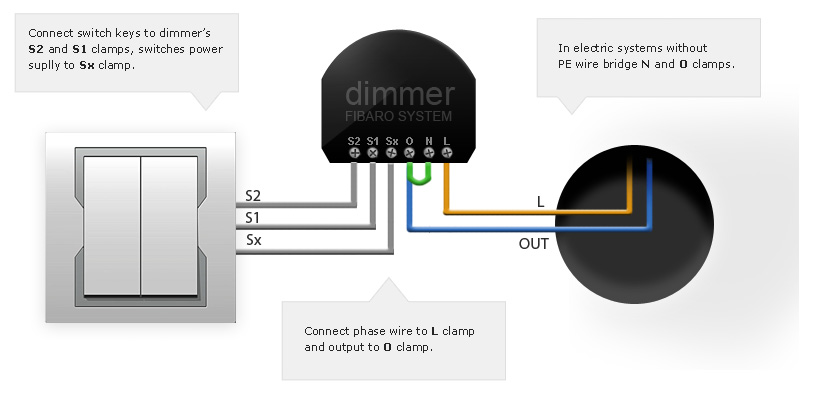

To ensure your safety, an electrician or a trained person should install the system. The picture below shows an example of the installation process for one of our products.

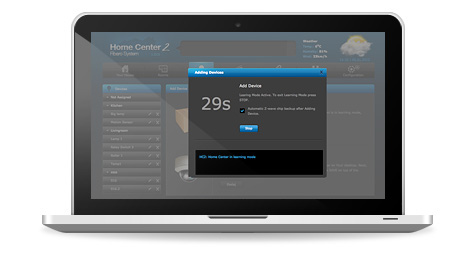

Adding a device to the Home Center
In order to complete the installation process, you need to add the installed device to the Home Center, i.e. to our automation center’s database. By putting the Home Center into listen mode and pressing the switch under which our module is located three times, you will complete the installation process. Thanks to the innovative Z-Wave technology, the Fibaro System devices can easily communicate with the Home Center, while the installation of the building automation system is easy and – more importantly – cheap.
